Pumpers from EMPL: modern, perfectly equipped emergency vehicles with many special technical features to ensure the performance of the fire service and the safety of the public.
Benefits
- solution-oriented, personal consultation on the technical possibilities
- special-purpose solutions can be implemented within the standard
- self-explanatory, simple operation (manual or via CAN bus monitor)

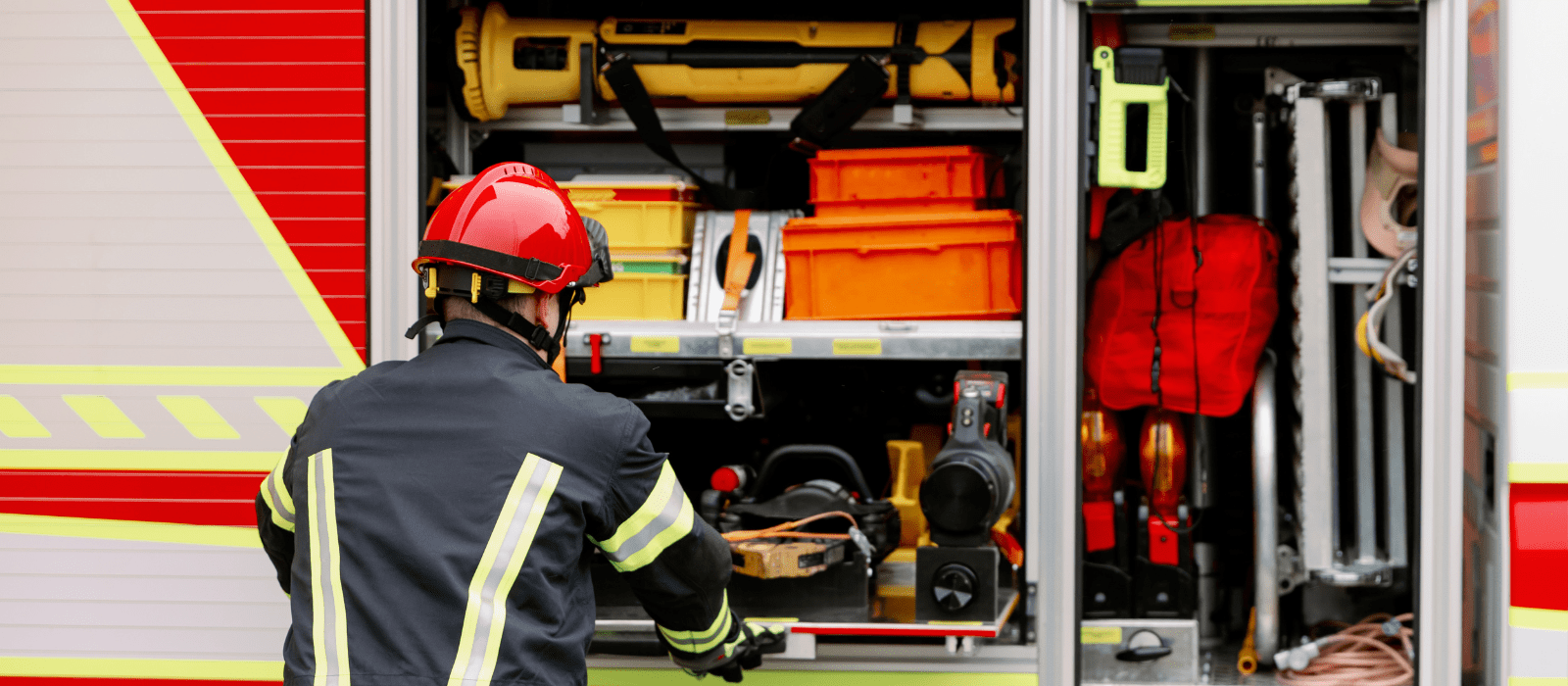

- well-thought out, ergonomic equipment compartment and loading concept
- reliable, robust and durable
- individual versions
Technical Information
EMPL vehicle bodies are manufactured with ALU-Tech panels. These combine aluminium cover layers with a PP honeycomb core. The inner plastic coating allows easy cleaning.
Properties- maximum bending stiffness combined with light weight
- excellent dimensional stability
- high pressure strength
- construction material class B1 as per DIN 4102
- high-quality surface quality
- resistant
- easy to maintain
- maximum torsion resistance
- optimum corrosion protection
- proven design
- highly robust
- easy to adjust
- handles with coloured marking
- espagnolette locking bolt
- large opening angle
- ergonomically accessible
- continuous glove strip
- self-tightening closing straps
Whether analogue pump control stations as per AGBF (Working Group of Managers of German Professional Fire Services), operation via screen using CAN bus system or individually designed pump control stations. EMPL offers the full range of solutions for a variety of different customer requirements.
Human Interaction TechnologyA CAN bus system is used to control all important devices, call up status functions, observe system status and monitor command execution. It is a universal interface which makes the information from one control device available for all other devices.
H.I.T. CAN Bus Control
EMPL human interaction technology is the simplest and easiest way of operating a pumper. The control uses a fully automatic, self-monitoring system with a 7” LCD colour display with LED backlight in the driver's cab and on the pump control station.
- 7” wide screen colour display with anti-glare coating
- powerful LED backlight with long service life
- large viewing angle
- soft keys with long-life LED contour lighting
- camera input for optional reversing video system in the driver's cab
- integrated warning buzzer
- emergency operation optionally through valve terminal
Individual control stations are designed together with the customers control stations from existing vehicles can also be implemented.
